KEYSTONE AUXILIARY LED LIGHTS

RUN -BRAKE - TURN SIGNAL on a 2022 ULTRA H-D

By Rogue
11/15/2022


Share this story:

Though the rear lighting on my 2022 Ultra Limited was good I felt that it could use a little more. I am one of those guys who wants folks behind me to see me and also know when I am stopping or turning.



 There are panels between the saddlebags and the fender that have cutouts for these lights. The lamps are mounted in a sealed housing that slips into the opening and are held in place with the saddlebag hardware and an adhesive pad. They would give me the additional lighting I was looking for.

There is a choice of a smoke lens. https://www.harley-davidson.com/us/en/shop/keystone-auxiliary-led-run-brake-turn-lamp/p/67801082 which I decided to use.

There is also the traditional red lens model https://www.harley-davidson.com/us/en/shop/keystone-auxiliary-led-run-brake-turn-lamp/p/67801080

A nice function to using these links is that there is a place on the page you can put in your motorcycle information and it will let you know if it fits your motorcycle and if any other parts are necessary for proper installation.

The installation of these lights is something that most people who work on their own motorcycle should be able to do. The kit does come with a detailed instruction sheet and it should be read prior to installing these lights.

NOTE

The temperature should be between 70 and 100 degrees for proper drying of adhesive pad and at least 24 hours should pass before exposing to water. Maximum Strength after 72 hours.

TOOLS

3/8 Drive foot pounds Torque Wrench

3/8 Drive Ratchet

3/8 Breaker Bar

3/8 drive 1/2-inch-deep socket

3/8 drive 40 Torx

1/4 Drive Inch Pounds Torque Wrench
1/4 Drive Inch Pounds Torque Wrench

1/4 Drive Phillips Screw Driver
1/4 Drive Phillips Screw Driver

Phillips Screw Driver

Diagonal cutter



INSTALLATION

Side Cover Removed
Side Cover Removed

Remove Saddlebags, Seat and Main Fuse. (Main Fuse is under left side cover)

Using 40 Torx, breaker bar, ratchet and ½ inch socket remove the nut from the inside bolt of the saddlebag mount. Do Not Remove Bolt.

There are right and left lenses.

Test Fitting Light
Test Fitting Light



With Adhesive still on backing plate Test Fit the light.

Remove light and clean the area that the adhesive backing touched. Wipe the casting with a mixture of Equal Parts of Isopropyl Alcohol and Distilled Water.

Allow To Dry Completely

Remove adhesive tape backing

Installing Bracket
Installing Bracket



Position bracket over screw and apply firm sliding pressure in tape area.

 Torquing Bracket To Saddlebag Mount
Torquing Bracket To Saddlebag Mount

(to lose will not hold light properly and to tight could crack bracket)
Install nut on screw and torque Nut to 15-20 Foot Pounds.

Light Being Installed
Light Being Installed

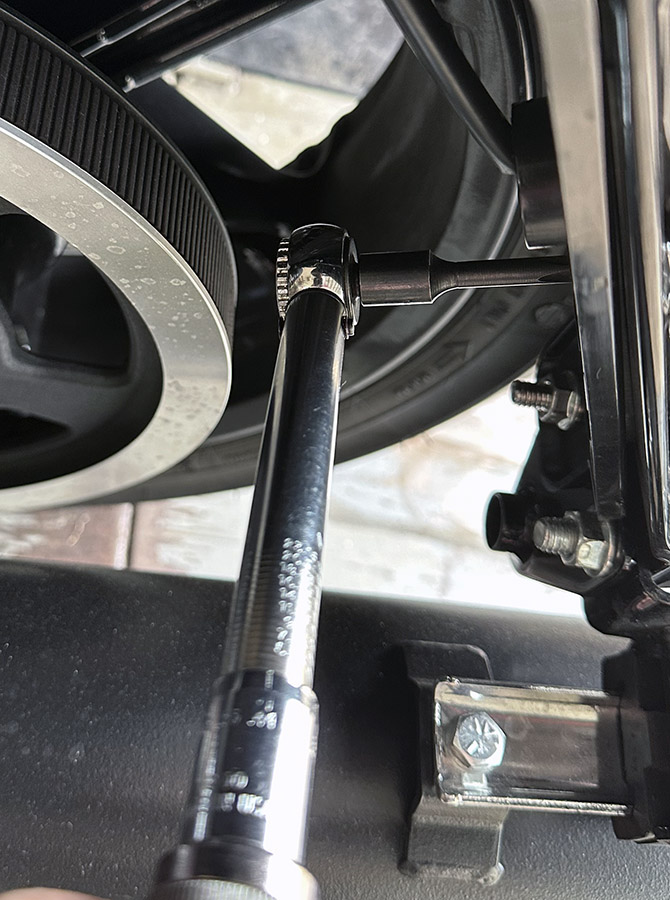

Torquing Light To Bracket
Torquing Light To Bracket

Install LED light and torque Screws to 8 Inch Pounds. Caution Over Tightening Will Crack The LED Light.

Repeat procedure on other side of motorcycle.

Securing Wiring To Frame With Plastic Tie
Securing Wiring To Frame With Plastic Tie


Connecting Lights To Harness Under Seat
Connecting Lights To Harness Under Seat



 Easy plug and play means no wiring splicing. Route wiring from each light up along frame rails securing with plastic wire ties and connect to supplied Y-harness. Separate factory taillight connector and insert harness.

Insert fuse and check operation of lights.

Install seat and pull up on front to make sure it is secure.

Install saddlebags. Done deal, go for a ride.
