5-Ball Racing 2012: Chapter 10, Bonne Belle

Final Engine and Chassis Assembly

By Bandit with photos by Sin Wu
7/13/2012


Share this story:




Set up to find top dead center at Departure Bike Works.
Set up to find top dead center at Departure Bike Works.




I was told twice to pump up our K-Model side valve compression to 9:1. Didn’t seem like a problem to me, in my flathead ignorant bliss. I spoke to Lee Chapin, the master of Mikuni carburetors for several decades. “The 9:1 compression will work well with a 42mm Mikuni,” Lee said.

I rode over to the Branch O’Keefe headquarters, where the masterminds of headwork reside. They agreed with the 9:1 level, but then I spoke to flathead gurus and another performance story unfolded. When it comes to racing wrench heads from all over the world will reach into any pocket, on any corner of the earth for help. I stumbled into Maggy Valley, North Carolina, and the Wheels Through Time Museum. During a harried tour of the motorcycle-god-like facility, I sprang the compression ratio question on the master of metal mayhem, history, performance, secrets, you name it. Dale Walksler is as close to a Harley God as a man can become. If you have a bucket list, the Wheels Through Time Museum, must reside at the very top.

After finding TDC we moved flywheel to lay out timing marks. Timing marks were lost when we machined wheels to fit into cases.
After finding TDC we moved flywheel to lay out timing marks. Timing marks were lost when we machined wheels to fit into cases.



Dale looked at me as if I was nuts, when I suggested the elevated compression ratio. In fact, he helped us locate many of the K-model components for the Bonne Belle. “I only have one flathead that contains that level of compression,” Dale said, “and it runs like shit, and must be advanced to dangerous levels.” I spoke to Duncan Keller, a magnum engine builder who mirrored Dale’s sentiment. I immediately called Lee Clemens, “Belay my last,” I said while my cell-phone signal scratched and blurred along a Shady Valley winding road.


Plate on head w/pocket reliefs for valves set to measure cc of head.
Plate on head w/pocket reliefs for valves set to measure cc of head.





Lee was relieved. Here’s the deal with side valve flatheads. The valves are not over the piston, so the combustion area must arm wrestle between the ports, the piston, and the sparkplug. Consequently, if the compression is enhanced, the combustion area is basically squished preventing the air fuel mixture from rolling over to the piston, where the spark plug resides directly above the piston. It could actually fire above the valves and push the piston to the side, instead of down. At least that’s my understanding.

Same plate now set to measure cc of cyl/valve pockets - then we can calculate the compression ratio.
The compression is 6.750 to 1 without cyl base gskt-with gskt should come to 6.6 to 1 -- right on time.
Same plate now set to measure cc of cyl/valve pockets - then we can calculate the compression ratio. The compression is 6.750 to 1 without cyl base gskt-with gskt should come to 6.6 to 1 -- right on time.



The engine could face final assembly, at last. Lee also required Dale’s assistance with the intake manifold. He chose to modify a stock K-model intake Y-manifold and add a Mikuni friendly spigot. I may need to build an air-box when the engine arrives. We want to keep the Mikuni components in tight to the engine for the aerodynamic equation.

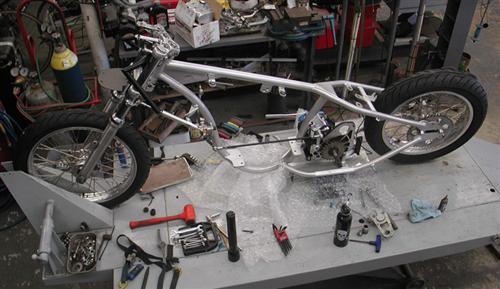

In the meantime, the Bonne Belle powder coating returned from Tony Pisano’s shop. Two new tires arrived from Avon and we ran them over to Settle’s Cycles for mounting and balancing. We scrambled into the shop and started final assembly with the front end first.

Biker's Choice steering damper worked perfectly.
Biker's Choice steering damper worked perfectly.





I also had a couple of conversations with Aaron, at D&D exhaust regarding pipe design, which reminds me. We are looking into how a pipe attaches to the head exhaust port.






Modified 5-speed tranny plate, and rear chain adjuster bracket using primary chain teflon boot.
Modified 5-speed tranny plate, and rear chain adjuster bracket using primary chain teflon boot.




I hauled ass up to Baker’s Performance for fittings, and mounted the Kustom’s Inc. Oil tank. I bite my nails as I stumble into final assembly. I’ve never built a motorcycle without all the components at hand. It’s going to be interesting when the engine arrives and we attempt to line up the BDL primary after significant guesswork. Let’s see what happens next.

Wild sunset, outside the headquarters, on the first rainy July 12 in a decade or more.
Wild sunset, outside the headquarters, on the first rainy July 12 in a decade or more.




Hand made Kustoms Inc. oil bag.
Hand made Kustoms Inc. oil bag.



New smaller Avon tires. I hope they fit the Bare Knuckle fenders.
New smaller Avon tires. I hope they fit the Bare Knuckle fenders.




5-Ball Racing Bonne Belle Sources

Accurate Engineering



BDL

Click on the banner for more info.
Click on the banner for more info.



Departure Bike Works



Kustoms Inc.
517-627-3131
Grand Ledge, MI



Pacific Coast Cycles
2430 Lewis Ave.
Signal Hill, CA 90755
(562) 426-8095
http://www.pacificcoastcycle.co

Advertisement




Paughco



Performance Machine



Street Walker Exhaust

U.S. Choppers
http://www.uschopper.com/

Advertisement


Wire Plus

Yankee Engineuity
http://www.yankeeengineuity.com

Click on the banner for more info.
Click on the banner for more info.



I believe she's sitting on a restored 45 flathead--Yipee. Let's go racing, baby.
I believe she's sitting on a restored 45 flathead--Yipee. Let's go racing, baby.
